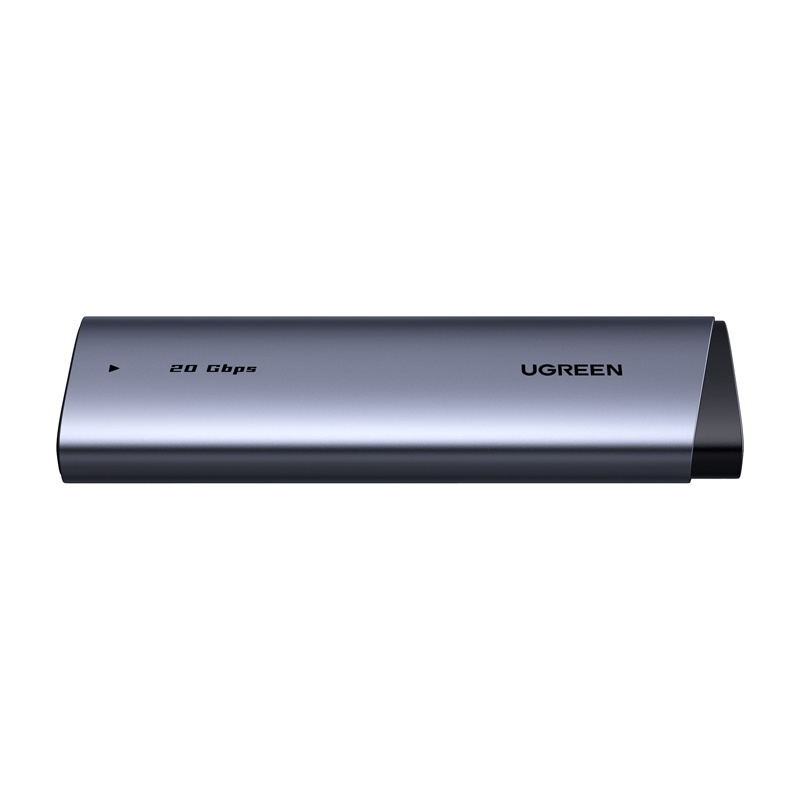

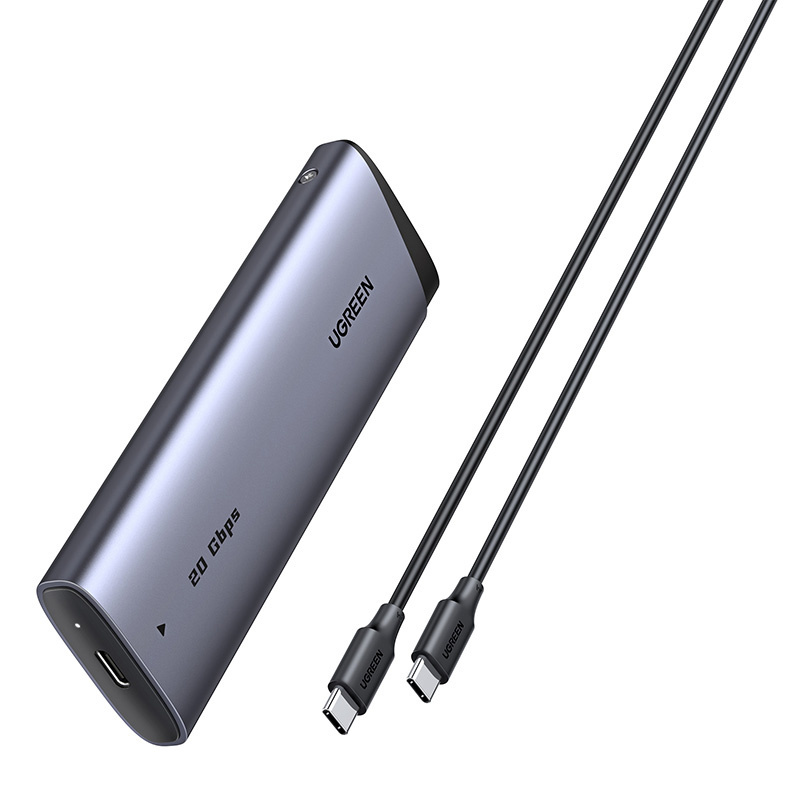

SSD enclosure Ugreen CM767, USB-C, M.2 NVMe/SATA

SSD enclosure Ugreen CM767, USB-C, M.2 NVMe/SATA

The Ugreen CM767 enclosure allows you to conveniently use SSDs (Solid State Drive, a solid state drive) in M.2 format. The device supports both NVMe (Non-Volatile Memory Express, a high-speed communication protocol) and SATA (Serial ATA, a standard interface for data transfer) interfaces, making it extremely versatile. With a USB-C (Universal Serial Bus Type-C, universal magistral serial bus type-C) connector and support for USB 3.2 Gen 2 (Universal Serial Bus 3.2 Generation 2, an interface standard for high-speed data transfer), the chassis ensures smooth and efficient operation even with large files.

High speed

Ugreen The CM767 allows for lightning-fast data transfer - it takes just 1 second to transfer a 1 GB file, provided a USB 3.2 Gen 2 compatible port is used. As a result, the enclosure is perfect for professional applications such as working with large video files, backups or installing operating systems from an external drive.

Stability and security

The RTL9210 chip ensures a stable connection and security of transmitted data. Support for UASP (USB Attached SCSI Protocol, a protocol that speeds up transfers) and TRIM (SSD optimization command) technologies improves the performance and durability of the installed media. SupportaRCie for S.M.A.R.T. (Self-Monitoring, Analysis and Reporting Technology, a technology that monitors the condition of the drive) further increases reliability.

Cooling for longer life

The case features a multi-stage heat dissipation system - an aluminum chassis, thermal pad and heat sink. This effectively lowers the operating temperature of the media, protecting it from overheating and loss of performance.

SupportaRCie for multiple drive types and sizes

The CM767 is compatible with NVMe (Non-Volatile Memory Express, a high-speed communication protocol) M.2 media using the PCIe (Peripheral Component Interconnect Express, a high-speed magistral communication interface), as well as SATA (Serial ATA, a standard interface for data transfer), M and M&B keys. It supports the four most popular disk lengths: 2230, 2242, 2260 and 2280, providing great flexibility to fit different configurations. The maximum supported capacity is 2TB, making the enclosure also suitable for professional applications.

Ready to use

There is no need to install additional software or drivers - justaRCzy plug the device into your computer. The Ugreen CM767 enclosure works with Windows, macOS, Linux and Android systems. The automatic sleep function after 15 minutes of inactivity saves energy and extends the life of the drive.
